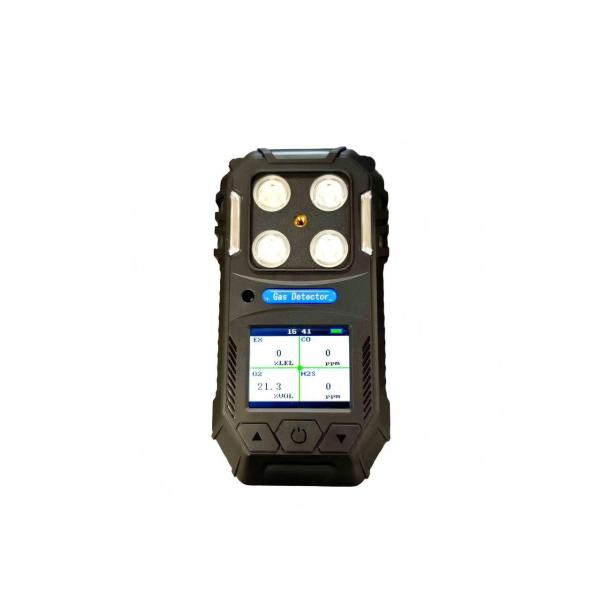

MS104K Portable 4-1 Gas Detector
OVERVIEW
MS104K, a state-of-the-art portable multi-gas detector designed for professionals who demand reliability, speed, and intuitive operation. This advanced device redefines gas detection with its vibrant TFT color LCD, delivering crystal-clear data visualization through an intuitive and aesthetically pleasing interface.
With a three-button control system, the MS104K ensures rapid navigation and configuration even under high-pressure conditions. Its triple-threat alarm system—audible, visual, and vibration alerts—guarantees immediate notification of hazardous conditions, maximizing user safety. Equipped with high-precision sensors, it provides rapid detection of up to four gases simultaneously, making it indispensable for diverse industrial applications.
The MS104K supports both Chinese and English interfaces and features a user-friendly graphical interface, making it globally ready. Its robust construction and stainless steel back clip offer durability and convenience for on-the-go professionals.
.
FEATURES
-
Versatile Multi-Gas Detection
Monitor combustible gases, oxygen, and a variety of toxic gases simultaneously. Modular sensor options (CO, H₂S, SO₂, NH₃, NO₂, PH₃, Cl₂) allow customization for 2-in-1, 3-in-1, or 4-in-1 configurations tailored to operational needs.
-
High-Definition TFT Color Display
A brilliant color LCD ensures superior readability and intuitive graphics, even in low-light or harsh environments.
-
Integrated Triple Alarm System
Immediate hazard alerts via audible alarms (≥75dB@25cm), LED visual signals, and vibration notifications ensure critical warnings are never missed.
-
Extensive Data Logging
Store and recall up to 1000 alarm records, supporting incident analysis, compliance reporting, and safety audits.
-
One-Touch Factory Reset
Safeguard against misconfigurations with a quick factory reset, ensuring consistent device performance.
SPECIFICATION
| Product Name | MS104K Multi Gas Detector |
| Gas Range | LEL, O2, CO,H2S, SO2, H2, NO2, HCN, NH3, O3, CLO2, HF, CH2O, PH3, CL2, CO2, CH4 |
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more) |
| Detection principle | Electrochemical, infrared red(IR), PID |
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years. |
| Allowable error | ≤±3% F.S (higher precision levels can be customized) |
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds |
| Working environment | Temperature: -20 ℃ ~ + 50 ℃, humidity: 10 ~ 95% RH |
| Power supply | Built-in high-performance lithium battery, nominal voltage: 3.7VDC; |
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm. |
| Charger | Travel charger with USB TYPC interface, USB power supply DC5V ; |
| Power Consumption | ≤0.7W |
| Operating Pressure | 86kPa to 106kPa |
| Protection level | IP65 |
| Explosion-proof mark | Exia II CT4 Ga |
| Exterior dimensions | 126×66×47mm (L×W×H) |
| Weight | 189g |
APPLICATION
The MS104K Portable Multi-Gas Detector is ideal for a wide range of industrial and environmental applications. It is perfectly suited for oil and chemical plants, mining and tunnel operations, industrial manufacturing, laboratories, emergency rescue, and maritime facilities, providing real-time detection of combustible gases, oxygen levels, and toxic gases. With its high-precision sensors, triple alarm system, and data logging capabilities, the MS104K ensures the safety of personnel, protects equipment, and supports compliance with safety regulations in demanding environments.
